• Folding Machines

    Folding Machines

    Sheet metal folding machines are suitable for small-batch and mass production of simple open and closed profiles and boxed products. They are highly flexible in the transition to a different type of products. The capacity of the engine-powered bending machines ranges from 1 mm - 8 mm of thickness and the length is in the range of 1 m - 5 m.

    Folding Machines

  • Motorized Plate Shears

    Motorized Plate Shears

    Motorized guillotine shears, up to 4 m in length and 5 mm in thickness, use an electric motor and gear mechanism to drive the cutting beam. The clamping system protects the sheet, and various equipment options allow for customization.

    Motorized Shears

  • Hydraulic Plate Shears

    Hydraulic Plate Shears

    They are the most efficient machines that allow to cut sheets up to a thickness of 20 mm and a length of 4 m. They shall apply in small series or series production. New NC control system allows control of the back gauge, to set a relevant shearing angle and the gap between the blades.

    Hydraulic Shears

  • Cut to length lines

    Cut to length lines

    They are intended for cutting sheets from coil. Construction of lines is modular, so we can deliver the line exactly according to the customer requirements. Maximum thickness of material is 2,25mm and a maximum coil width is 1500mm.

    Cut to length lines

Partners who trust us:

  • psa groupe
  • wv
  • hyundai
  • porsche
  • ussteel
  • ina
  • spp
  • lego

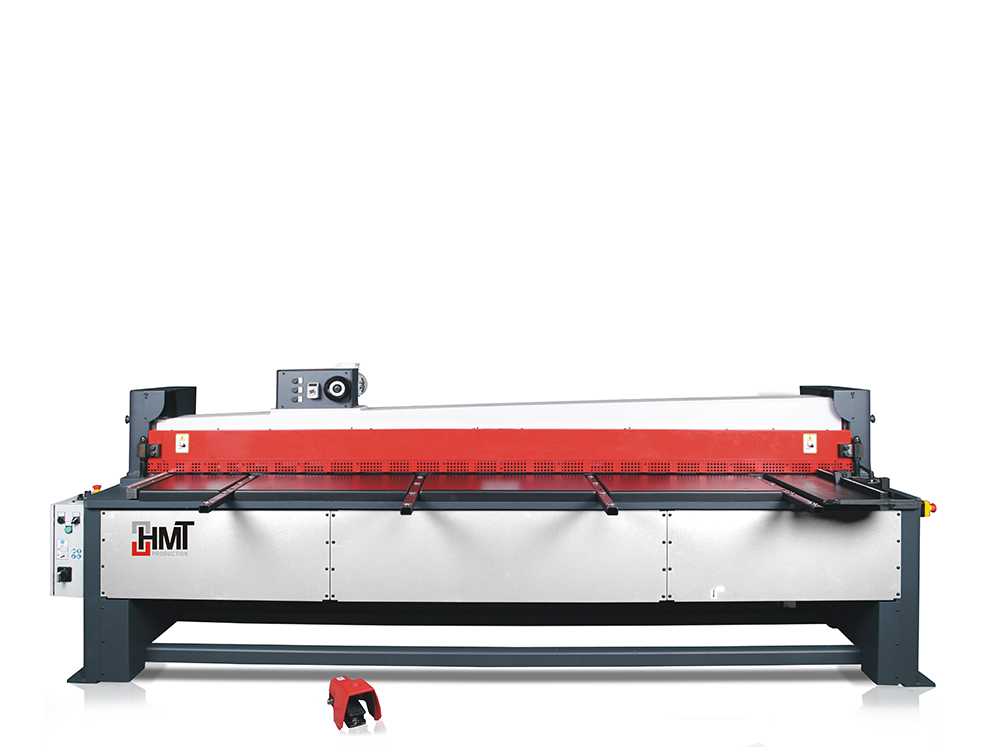

Motorized shears TKS TKS, TKS EB, TKS EC

Motoric shears of the TKS type are the latest product of manufacturer and belong to the most powerful machines of their category that are available on the market. They are designed for cutting of plates from steel, stainless steel, aluminum, etc.

The robust steel construction and powerful direct actuator gives the machine the possibility to cut of sheets up to 5mm of thickness. Required quality of shearing for different thicknesses and material quality can be achieved by setting the optimal clearance between the blades.

Sheet holder is rubberized and this prevents the damage to the material during cutting process. When cutting dimensional sheets, it is recommended to use both the extension arms on the table and table segments for easier handling with material sheared.

Control of the machine is provided by foot pedal. The wide standard and special accessories allow choosing the optimal device that is exploitable in manufacturing, construction, maintenance and servicing.

They are manufactured in these versions:

TKS - manual back gauge 0-750mm

TKS EB - motorized back gauge 0-750mm, with manual fine adjustment to the position

TKS EC - motorized back gauge 0-750mm, NC control system

Standard equipment:

  • adjusting system for gap between knives
  • knives for mild steel with two cutting edge
  • rubbered sheet holder
  • front support squaring arm with scale
  • extension of table 650 mm
  • segments for "full table"
  • rear delivery cutting material
  • mode of single or continual cuts
  • stroke counter
  • foot switch
  • connecting plug 32 amp, 3 x 400 V, 5 m cable (only for EU country)

Special equipment:

Manual back gauge

Manual back gauge

Motorized back gauge EC

Motorized back gauge EC

Motorized back gauge EB

Motorized back gauge EB

Back safety system

Back safety system

Hold-down pneumatic beam

Hold-down pneumatic beam

Front delivery cutting material

Front delivery cutting material

Back slip

Back slip

Pneumatic sheet catcher

Pneumatic sheet catcher

Squaring arm with scale and T-slot

Squaring arm with scale and T-slot

Extension arm of table 1000 mm

Extension arm of table 1000 mm

Extension arm of table with balls 650 mm or 1000 mm

Extension arm of table with balls 650 mm or 1000 mm

Extension arm of table with 1pc T-slot 650 mm or 1000 mm

Extension arm of table with 1pc T-slot 650 mm or 1000 mm

Additional T-slot

Additional T-slot

Goniometric with scale

Goniometric with scale

Pair of knives for stainless steel with two cutting edge

Pair of knives for stainless steel with two cutting edge

LED cutting line light

LED cutting line light

Removal palette

Removal palette

Customer colors

Customer colors

Producer reserves the right to change all specifications subject without notice.
